Rotate 90
Transform

Rotates an image by exactly 90°, 180°, or 270°. Pixel-perfect with no interpolation.

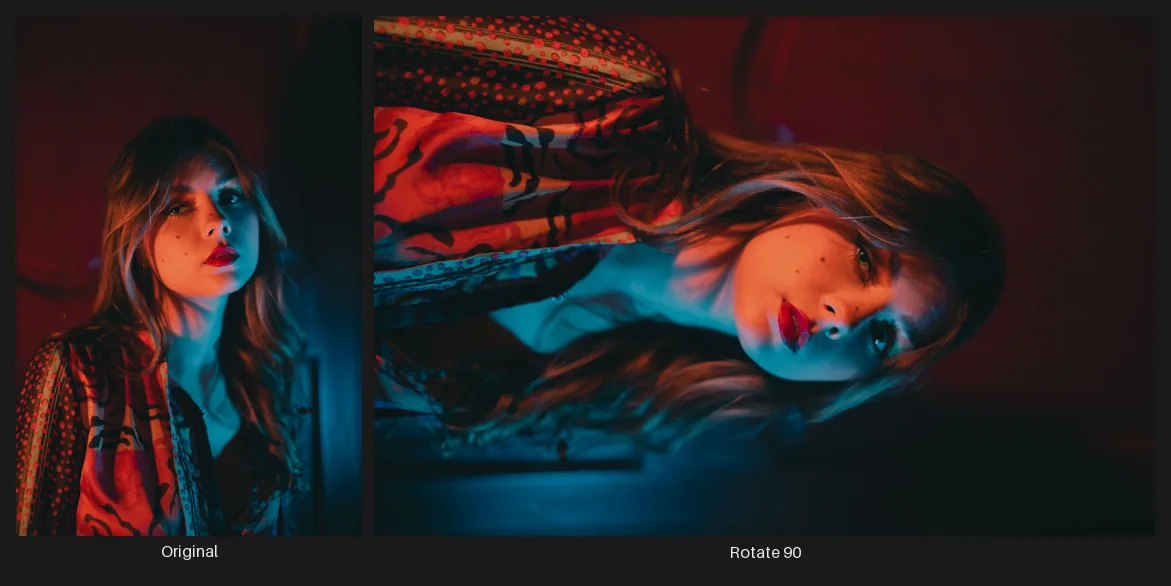

The Rotate 90 node applied to a source image: original (left) and result (right).
Side-by-side comparison: the original image on the left and the same image after the Rotate 90 node on the right.

Because the angle is always a multiple of 90°, every pixel maps exactly to a new position, with no resampling, blurring, or anti-aliasing. Use it instead of Transform’s rotation whenever you need a quarter or half turn; Transform interpolates for arbitrary angles, which softens the image slightly.

Rotate 90 also accepts a whole texture set: every map takes the same quarter turn, and the Normal’s directions are turned with it, so the rotated Normal still describes the rotated Height.

Parameters

Section titled “Parameters”

Pins

ImagePixels or Texture
InputRequired
ImagePixels or Texture
Output

Transform

RotationChoice
Default: 90° CW

Rotation increment

  • 90° CWRotate 90 degrees clockwise.
  • 180°Rotate 180 degrees, equivalent to flipping both axes.
  • 90° CCWRotate 90 degrees counter-clockwise.

Usage Tips

Section titled “Usage Tips”
  • Combine with Mirror to reach all eight orientations of an image.
